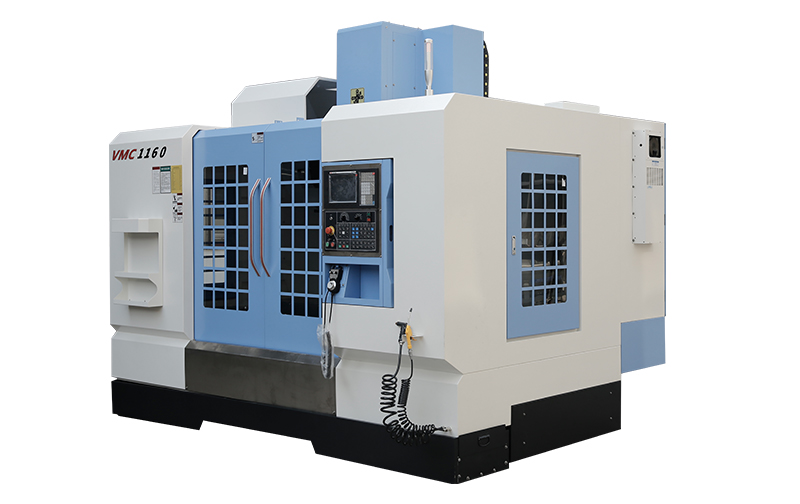

VMC1160

Cast iron tempered for stress relief to ensure structural stability

C3 preloaded ball screws ensure the highest accuracy and durability

Premium linear guide ways and powerful servo drives on 3 axes

Totally enclosed work space ensures maximum safety and flexibility

Siemens, Fanuc, Fagor, Mitsubishi, GSK controller is available

Model	Unit	VMC1160	VMC1165	VMC1270
TABLE
Table size	mm	1200X600	1200x600	1400X700
Max. loading capacity	kg	900	900	1000
T-slot(number-width-pitch)	mm	5-18-100	5-18-120	5-18-140
TRAVEL
X/Y/Z axis travel	mm	1100/600/600	1100/650/650	1200/700/700
Spindle nose to table surface	mm	120-720	110-760	120-820
Spindle center to column guide	mm	650	690	650
SPINDLE
Spindle motor ( cont/30min)	kw	11/15	11/15	11/15
Spindle speed	rpm	8000	8000	8000
Spindle taper		BT40 (Ø150)	BT40 (Ø150)	BT40 (Ø150)
FEED
X/Y/Z cutting feed	mm / min	1-10000	1-10000	1-10000
X/Y/Z rapid feed	m / min	36/36 /36	36/36 /36	36/36/36
X/Y/Z feed motor	Kw	3.0/3.0/4.5	3.0/3.0/4.5	3.0/3.0/4.5
TOOL MAGAZNINE
Tool magazine capacity/type		24T /Arm-type	24T /Arm-type	24T/Arm-type
Accuracy:
Positioning	mm	±0.005	±0.005	±0.005
Repeatability	mm	±0.003	±0.003	±0.003
Others:
Overall dimension	mm	6500	7000	9000
Approx Weight	Kgs	320x255x260	349x264x270	330X300X300
